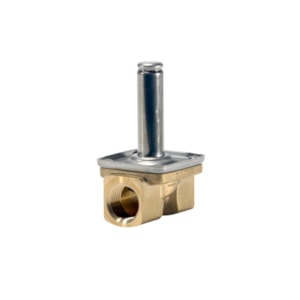

VAN ĐIỆN TỪ DANFOSS EV220B, Function: NO, G, 1 1/4, 18 m³/h, EPDM - C/N 032U8543

Gross weight

2.2 Kilogram

Net weight

1.818 Kilogram

Volume

7.334 Liter

EAN

5715255133636

Type

EV220B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Body material

Stainless steel

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection Internal/External

Internal

Connection material

Stainless steel

Connection size [in]

1 1/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

20.8 gal/min

Differential pressure [bar] [max]

12 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

174 psi

Differential pressure [psi] [min]

4.35 psi

Est. time to close, water [ms]

2500 ms

Est. time to open, water [ms]

1000 ms

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NO

Kv value [m³/h]

18 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

12 bar

Max. Working Pressure [psig]

174 psig

Media recommendations

Technical & Soft Water

Media tolerance comments

Aggressive media; Steam Max 4 bar; Temperature: Coil dependent

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

32 mm

Orifice size fraction [in]

1 1/4 in

Packing format

Single pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Quantity per packing format

1 pc

REACH Candidate List substances

No

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 32SS G 114E NO000

Type designation

EV220B 32
