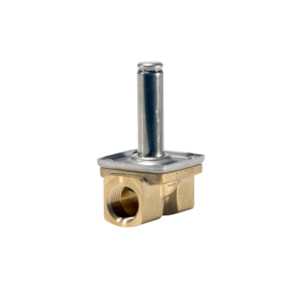

VAN ĐIỆN TỪ DANFOSS EV220B - C/N 032U8532

Gross weight

687 Gram

Net weight

620 Gram

Volume

0.88 Liter

EAN

5715255160724

Type

EV222BW

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

BW

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Body material

Stainless steel

Connection Internal/External

Internal

Connection material

Stainless steel

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

4.6 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

4.35 psi

Est. time to close, water [ms]

350 ms

Est. time to open, water [ms]

40 ms

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Function

NC

Kv value [m³/h]

4 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Technical & Soft Water

Media tolerance comments

Aggressive media; Contaminated media

Medium temperature range [°C] [max]

50 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

122 °F

Medium temperature range [°F] [min]

32 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

15 mm

Orifice size fraction [in]

5/8 in

Packing format

Multi pack

Parts Program name

EV222BW

Quantity per packing format

24 pc

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV222BW 15SS G 12E NC000

Type designation

EV222BW 15
