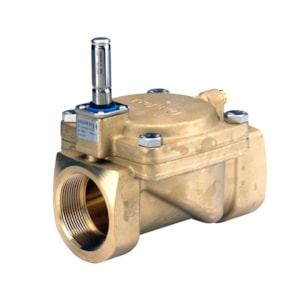

VAN ĐIỆN TỪ DANFOSS EV220B, Function: NO, NPT, 2, 40 m³/h, EPDM - C/N 032U6549

Gross weight

5.138 Kilogram

Net weight

4.743 Kilogram

Volume

7.334 Liter

EAN

5702423031641

Type

EV220B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Body material

DZR brass

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

2

Connection standard

ANSI/ASME B1.20.1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

46.2 gal/min

Differential pressure [bar] [max]

9.791 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

142 psi

Differential pressure [psi] [min]

4.351 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to close, water [ms]

10000 ms

Est. time to open, water [ms]

5000 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NO

In scope of WEEE

Yes

Kv value [m³/h]

40 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

20 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

12.4 bar

Max. Working Pressure [psig]

180 psig

Media recommendations

Technical & Soft Water

Media tolerance comments

Slightly aggressive media; Steam Max 4 bar; Temperature: Coil dependent

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

50 mm

Orifice size fraction [in]

2 in

Packing format

Single pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

e1e8e346-d9ba-4293-882a-99c4f592144c

SCIP dossier product name

EV220B 15-50 brass NO - solenoid valve

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 50BD N 2E NO000

Type designation

EV220B 50
