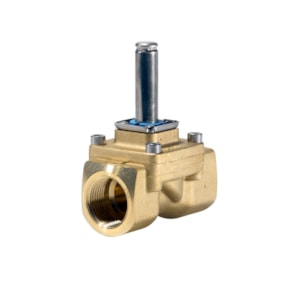

VAN ĐIỆN TỪ DANFOSS EV250B, Function: NC, NPT, 1, 7 m³/h, EPDM- C/N 032U5266

Gross weight

1.116 Kilogram

Net weight

1.054 Kilogram

Volume

1.295 Liter

EAN

5702423191963

Type

EV250B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

DNV; EAC; PZH; SINTEF; UL; WRAS

Body material

DZR brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

1

Connection standard

ANSI/ASME B1.20.1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

8.1 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to close, water [ms]

100 ms

Est. time to open, water [ms]

150 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

7 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

218 psig

Max. Working Pressure [bar]

15.5 bar

Max. Working Pressure [psig]

225 psig

Media recommendations

Technical & Soft Water

Media tolerance comments

-30–120 °C: 0–10 bar; 120–140 °C: 0–4 bar; Slightly aggressive media

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Assisted lift operated

Orifice size [mm]

22 mm

Orifice size fraction [in]

7/8 in

Packing format

Multi pack

Parts Program name

EV250B

Product accessories

Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

23e5d8c0-c744-42b7-b414-f18776b38f4b

SCIP dossier product name

EV250B NC - solenoid valve

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV250B 22BD N 1E NC000

Type designation

EV250B 22

UL mark

Yes
