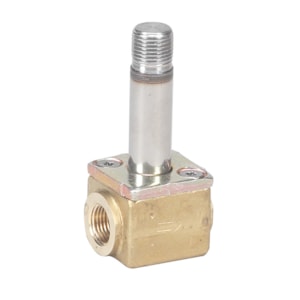

VAN ĐIỆN TỪ DANFOSS EV210B, Function: NC, NPT, 3/8, 0.61 m³/h, PTFE - C/N 032U3705

Gross weight

189.15 Gram

Net weight

182 Gram

Volume

0.253 Liter

EAN

5715255092889

Type

EV210B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Closed and Drain

Body material

Brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

0.71 gal/min

Differential pressure [bar] [max]

13 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

189 psi

Differential pressure [psi] [min]

0 psi

Est. time to close, water [ms]

20 ms

Est. time to open, water [ms]

20 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

Kv value [m³/h]

0.61 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

19.5 bar

Max. test pressure [psig]

283 psig

Max. Working Pressure [bar]

13 bar

Max. Working Pressure [psig]

189 psig

Media recommendations

Steam

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

5.5 mm

Orifice size fraction [in]

7/32 in

Packing format

Multi pack

Parts Program name

EV210B

Product accessories

Solenoid valve accessories

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

f39c9b5f-71a1-49e3-bc6d-20baa8f46870

SCIP dossier product name

EV210B brass NC - solenoid valve

Seal Material

PTFE

Serviceable

Solenoid valve spare parts

Specification key

EV210B 5.5 B 38N NC000

Type designation

EV210B 5.5
