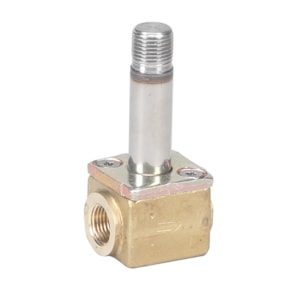

VAN ĐIỆN TỪ DANFOSS EV210A, Function: NC, G, 1/8, 0.17 m³/h, PTFE - C/N 032H8257

Gross weight

0.099 Kilogram

Net weight

0.085 Kilogram

Volume

0.109 Liter

EAN

5702428989596

Type

EV210A

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Closed and Drain

Body material

Brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/8

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.2 gal/min

Differential pressure [bar] [max]

20 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

290 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to close, water [ms]

10 ms

Est. time to open, water [ms]

10 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Engraved 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

0.17 m³/h

Max media viscosity [cSt]

20 cSt

Max. test pressure [bar]

6 bar

Max. test pressure [psig]

87 psig

Max. Working Pressure [bar]

4 bar

Max. Working Pressure [psig]

58 psig

Media recommendations

Steam

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

2.5 mm

Orifice size fraction [in]

3/32 in

Packing format

Multi pack

Parts Program name

EV210A

Product accessories

Solenoid valve accessories

Quantity per packing format

16 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6bc3fec0-8115-484f-a3e7-a47e8f714a69

SCIP dossier product name

EV210A B - solenoid valve

Seal Material

PTFE

Serviceable

Solenoid valve spare parts

Specification key

EV210A 2.5B G 18T NC000

Type designation

EV210A 2.5
