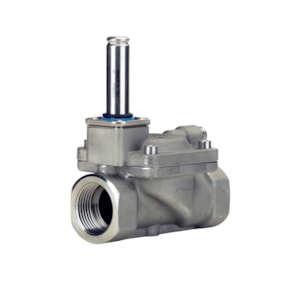

VAN ĐIỆN TỪ DANFOSS EV220B, Function: NC, NPT, 1, 11 m³/h, FKM - C/N 032U8558

Gross weight

1.323 Kilogram

Net weight

1.262 Kilogram

Volume

1.295 Liter

EAN

5702423140855

Type

EV220B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Body material

Stainless steel

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection Internal/External

Internal

Connection material

Stainless steel

Connection size [in]

1

Connection standard

ANSI/ASME B1.20.1

Connection type

NPT

Contains batteries

No

Cv value [gal/min]

12.7 gal/min

Differential pressure [bar] [max]

9.791 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

142 psi

Differential pressure [psi] [min]

4.351 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to open, water [ms]

300 ms

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

11 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

20 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

12.4 bar

Max. Working Pressure [psig]

180 psig

Media recommendations

Oil,Comp.Air,Vacuum

Media tolerance comments

Aggressive media; Water at max. 60°C/140 °F

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

32 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

25 mm

Orifice size fraction [in]

1 in

Packing format

Multi pack

Parts Program name

EV220B 15 - 50

Product accessories

Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

No

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 25SS N 1F NC000

Type designation

EV220B 25

UL mark

Yes
