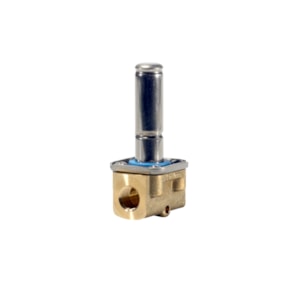

VAN ĐIỆN TỪ DANFOSS EV210B, Function: NO, G, 1/4, 0.08 m³/h, PTFE - C/N 032U3718

Gross weight

0.182 Kilogram

Net weight

0.157 Kilogram

Volume

0.253 Liter

EAN

5702428921770

Type

EV210B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Closed and Drain

Approval

DNVGL-CG-0339

Body material

Brass

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.09 gal/min

Differential pressure [bar] [max]

40 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

580 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fluid Group

1

Function

NO

In scope of WEEE

Yes

Kv value [m³/h]

0.08 m³/h

Max. test pressure [bar]

60 bar

Max. test pressure [psig]

870 psig

Max. Working Pressure [bar]

40 bar

Max. Working Pressure [psig]

580 psig

Media recommendations

Oil,Comp.Air,Vacuum

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-40 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

1.5 mm

Orifice size fraction [in]

1/16 in

Outlet Internal/External

Internal

Packing format

Multi pack

Parts Program name

EV210B

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

eb4cbd6b-085c-4899-b884-eea5016148b5

SCIP dossier product name

EV210B brass NO - solenoid valve

Seal Material

PTFE

Type designation

EV210B 1.5
