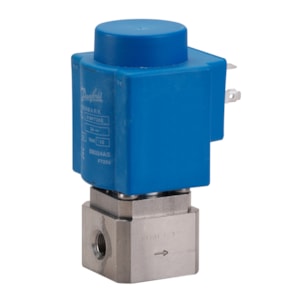

VAN ĐIỆN TỪ DANFOSS EV212B, Function: NC, G, 1/4, 0.3 m³/h, FKM - C/N 032U1781

Mã sản phẩm: 032U1781

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỆN TỪ DANFOSS EV212B, Function: NC, G, 1/4, 0.3 m³/h, FKM - C/N 032U1781

Product details

Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Application	Open
Approval	DNVGL-CG-0339
Body material	Brass
China RoHS compliance	Yes
Connection Internal/External	Internal
Connection material	Brass
Connection size [in]	1/4
Connection standard	ISO 228-1
Connection type	G
Contains batteries	No
Cv value [gal/min]	0.35 gal/min
Differential pressure [bar] [max]	15 bar
Differential pressure [bar] [min]	0 bar
Differential pressure [psi] [max]	218 psi
Differential pressure [psi] [min]	0 psi
EEE category	5 small equipment (any external dimension < 50 cm)
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Fluid Group	1
Function	NC
In scope of WEEE	Yes
Kv value [m³/h]	0.3 m³/h
Max. test pressure [bar]	22.5 bar
Max. test pressure [psig]	326 psig
Max. Working Pressure [bar]	15 bar
Max. Working Pressure [psig]	218 psig
Media recommendations	Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max]	100 °C
Medium temperature range [°C] [min]	0 °C
Medium temperature range [°F] [max]	212 °F
Medium temperature range [°F] [min]	32 °F
Number of ways	2/2
Operation	Direct-operated
Orifice size [mm]	3 mm
Orifice size fraction [in]	1/8 in
Packing format	Multi pack
Quantity per packing format	20 pc
REACH Candidate List substances	No
Seal Material	FKM
Specification key	EV212B 3B G 14F NC000
Type designation	EV212B 3
