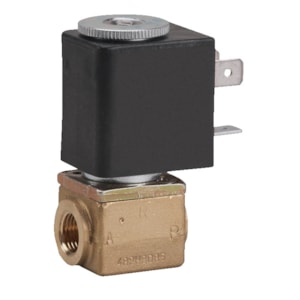

VAN ĐIỆN TỪ DANFOSS EV310A, Function: NC, G, 1/4, 0.132 m³/h, FKM- C/N 032H8111

Gross weight

0.119 Kilogram

Net weight

0.11 Kilogram

Volume

0.113 Liter

EAN

5702428447522

Type

EV310A

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

A

Actuator size

9 mm

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Body material

Brass

China RoHS compliance

Out of scope

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.153 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Est. time to close, water [ms]

10 ms

Est. time to open, water [ms]

10 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction indicator

Engraved A-P-R

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

0.132 m³/h

Max media viscosity [cSt]

20 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Oil,Comp.Air,Vacuum

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

3/2

Operation

Direct-operated

Orifice size [mm]

2.2 mm

Orifice size fraction [in]

3/32 in

Packing format

Multi pack

Parts Program name

EV310A

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Quantity per packing format

16 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

049058ad-6d73-4ec9-9d2b-b574054e817d

SCIP dossier product name

EV310A - solenoid valve

Seal Material

FKM

Serviceable

Solenoid valve spare parts

Specification key

EV310A 2.2B G 14F NC000

Type designation

EV310A 2.2
