BỘ PHỤ TÙNG DANFOSS EV250BW 10/12BE NC - C/N 132U8012

Gross weight

0.13 Kilogram

Net weight

0.063 Kilogram

Volume

0.253 Liter

EAN

5715162293027

Type

Spare part

Product group

Solenoid valves spare parts

Product Name Description

Service kit

China RoHS compliance

Out of scope

Contains batteries

No

Description

Spare part EV250BW 10/12BE NC

EU RoHS compliance

Out of scope

Function

NC

Media recommendations

Drinking Water&Heating ECO/SS

Packing format

Multi pack

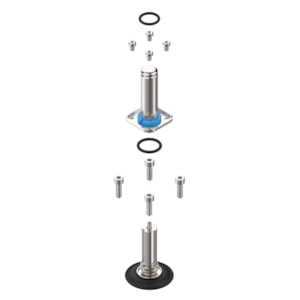

Parts included

Armature assembly EV250BW NC
Armature tube assembly
Cap 13,9 14 Red
Compession spring
Diaphragm assembly
O-ring for armature tube
O-ring for coil
Screw M4 x 6 Torx T15
Read more

Quantity per packing format

20 pc

Seal Material

EPDM

Type designation

Diaphragm, actuator set

Used for product

EV250BW 10/12BE NC
