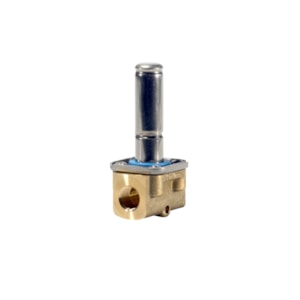

VAN ĐIỆN TỪ DANFOSS EV210BW, Function: NO, G, 3/8, 0.55 m³/h, EPDM - C/N 132U4401

Gross weight

0.195 Kilogram

Net weight

0.168 Kilogram

Volume

0.253 Liter

EAN

5702428544283

Type

EV210BW

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

BW

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

70 °C

Ambient temperature max. [°F]

158 °F

Application

Closed and Drain

Approval

ACS; PZH; RISE; SINTEF

Body material

Eco brass

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection Internal/External

Internal

Connection material

Eco brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

0.64 gal/min

Differential pressure [bar] [max]

2 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

29 psi

Differential pressure [psi] [min]

0 psi

Est. time to close, water [ms]

20 ms

Est. time to open, water [ms]

20 ms

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NO

Kv value [m³/h]

0.55 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

3 bar

Max. test pressure [psig]

43.5 psig

Max. Working Pressure [bar]

2 bar

Max. Working Pressure [psig]

29 psig

Media recommendations

Drinking Water&Heating ECO/SS

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

32 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

4.5 mm

Orifice size fraction [in]

3/16 in

Packing format

Multi pack

Parts Program name

EV210BW

Product accessories

Solenoid valve accessories

Quantity per packing format

20 pc

REACH Candidate List substances

No

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV210BW 4.5BE G 38E NO000

Type designation

EV210BW 4.5

UNSPSC CODE

40141605
