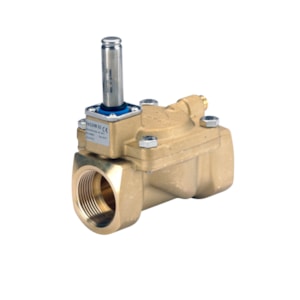

VAN ĐIỆN TỪ DABFFISS EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM - C/N 132U2406

Gross weight

2.21 Kilogram

Net weight

1.815 Kilogram

Volume

7.334 Liter

EAN

5715162489871

Type

EV228BW

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

BW

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Approval

ACS; PZH; RISE; SINTEF

Body material

Eco brass

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection Internal/External

Internal

Connection material

Eco brass

Connection size [in]

1 1/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

20.8 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

4.35 psi

EEE category

5 small equipment (any external dimension < 50 cm)

EPD available

Yes

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Function

UN

In scope of WEEE

Yes

Inlet connection standard

ISO 228-1

Inlet connection type

G

Inlet Internal/External

Internal

Inlet size [in]

1 1/4 in

Kv value [m³/h]

18 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Max. Working Pressure note

Liquids: max 10 bar/145 psi

Media recommendations

Drinking Water&Heating ECO/SS

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Latching

Orifice size [mm]

32 mm

Orifice size fraction [in]

1 1/4 in

Outlet connection standard

ISO 228-1

Outlet connection type

G

Outlet Internal/External

Internal

Outlet size [in]

1 1/4 in

Packing format

Single pack

Parts Program name

EV228BW 15 - 50

Product accessories

Solenoid valve accessories

Quantity per packing format

1 pc

REACH Candidate List substances

No

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV228BW 32BE G 114E UN000

Type designation

EV228BW 32
