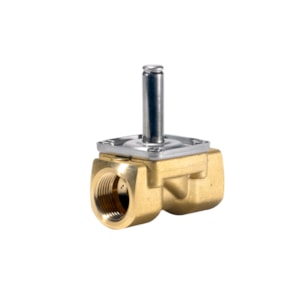

VAN ĐIỆN TỪ DANFOSS EV221BW, Function: NC, G, 1, 6 m³/h, EPDM - C/N 132U2200

Gross weight

0.958 Kilogram

Net weight

0.898 Kilogram

Volume

1.227 Liter

EAN

5702428544207

Type

EV221BW

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

BW

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Approval

ACS; PZH; RISE; SINTEF; WRAS

Approval comments

WRAS (0 – 85°C)

Body material

Eco brass

China RoHS compliance

Yes

China RoHS exemption clause

No

Connection Internal/External

Internal

Connection material

Eco brass

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

6.95 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

4.35 psi

Est. time to close, water [ms]

500 ms

Est. time to open, water [ms]

200 ms

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

Kv value [m³/h]

6 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Drinking Water&Heating ECO/SS

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

22 mm

Orifice size fraction [in]

7/8 in

Packing format

Multi pack

Parts Program name

EV221BW 10 - 22

Product accessories

Solenoid valve accessories

Quantity per packing format

12 pc

REACH Candidate List substances

No

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV221BW 22BE G 1E NC000

Type designation

EV221BW 22
