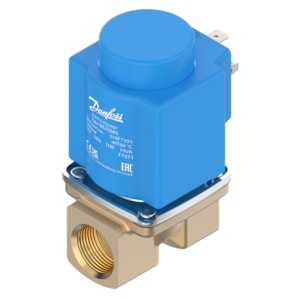

VAN ĐIỆN TỪ DANFOSS EV221BW, Function: NO, G, 1/2, 1.5 m³/h, EPDM - C/N 132U100331

Gross weight

0.58 Kilogram

Net weight

0.54 Kilogram

Volume

0.854 Liter

EAN

5715162889992

Type

EV221BW

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

BW

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

ACS ; PZH; RISE; SINTEF; WRAS

Approval comments

WRAS (0 – 85°C)

Body material

Eco brass

China RoHS compliance

Yes

China RoHS exemption clause

No

Coil type

BB230AS

Connection Internal/External

Internal

Connection material

DZR Eco brass, CW724R

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

1.75 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.1 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

1.45 psi

Est. time to close, water [ms]

300 ms

Est. time to open, water [ms]

50 ms

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NO

Kv value [m³/h]

1.5 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Drinking Water&Heating ECO/SS

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [max]

90 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

194 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

10 mm

Orifice size fraction [in]

3/8 in

Packing format

Multi pack

Parts Program name

EV221BW 10 - 22

Power consumption [W] 50Hz

11 W

Quantity per packing format

12 pc

REACH Candidate List substances

No

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV221BW10BE G12E NO000 BB230AS

Supply voltage 50Hz Max [V]

230 V

Type designation

EV221BW 10
