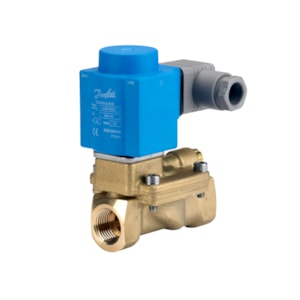

VAN ĐIỆN TỪ DANFOSS EV224B, Function: NO, G, 1/2, 4 m³/h, NBR - C/N 032U865132

Gross weight

1.025 Kilogram

Net weight

0.967 Kilogram

Volume

0.88 Liter

EAN

5702423271436

Type

EV224B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Approval

CE

Body material

Brass

CE mark

Yes

China RoHS compliance

Yes

China RoHS exemption clause

No

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

4.6 gal/min

Differential pressure [bar] [max]

40 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

580 psi

Differential pressure [psi] [min]

4.35 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Frequency [Hz]

50/60 Hz

Function

NO

In scope of WEEE

Yes

Kv value [m³/h]

4 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

60 bar

Max. test pressure [psig]

870 psig

Max. Working Pressure [bar]

40 bar

Max. Working Pressure [psig]

580 psig

Media recommendations

Compressed air

Media tolerance comments

Air with/without mineral oil

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

15 mm

Orifice size fraction [in]

5/8 in

Packing format

Multi pack

Power consumption [W] 50Hz

16 W

Power consumption [W] 60Hz

13 W

Quantity per packing format

12 pc

REACH Candidate List substances

No

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV224B 15B G 12N NO000 BB230CS

Supply voltage 50Hz Max [V]

230 V

Supply voltage 60Hz Max [V]

230 V

Supply voltage [V] AC

230 V

Type designation

EV224b 15
