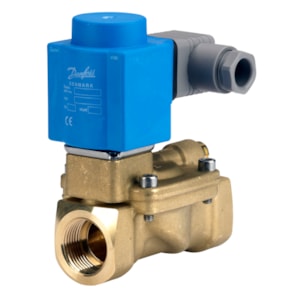

VAN ĐIỆN TỪ DANFOSS EV224B, Function: NC, G, 3/4, 8 m³/h, NBR -C/N 032U817102

Gross weight

1.172 Kilogram

Net weight

1.136 Kilogram

Volume

0.93 Liter

EAN

5702423155521

Type

EV224B

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Approval

CE; DNVGL-CG-0339

Body material

Brass

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

9.25 gal/min

Differential pressure [bar] [max]

35 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

508 psi

Differential pressure [psi] [min]

4.35 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP00

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

8 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

50 bar

Max. test pressure [psig]

725 psig

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

508 psig

Media recommendations

Compressed air

Media tolerance comments

Air with/without mineral oil
Air with/without synthetic oil

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Open/close equalizing orifice

Optional Equalization orifice

Operation

Servo-operated (diaphragm)

Orifice size [mm]

20 mm

Orifice size fraction [in]

3/4 in

Packing format

Industrial pack

Power consumption [W] DC

16 W

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

3cbac950-b315-4f09-8c50-9c941ac8e526

SCIP dossier product name

EV224B NC- solenoid valve

Seal Material

NBR

Serviceable

Solenoid valve spare parts

Specification key

EV224B 20B G 34N NC000 BB024DS

Supply voltage [V] DC

24 V

Type designation

EV224B 20
