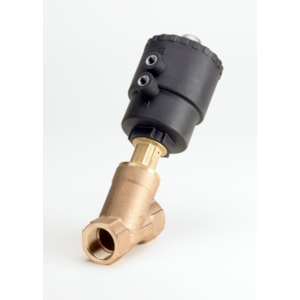

VAN GÓC ĐIỀU KHIỂN TỪ XA DANFOSS AV210E, NPT, 2, PTFE - C/N 042N4511

Gross weight

7.023 Kilogram

Net weight

6.023 Kilogram

Volume

13.728 Liter

EAN

5702423194346

Type

AV210E

Product group

Externally operated valves

Product Name Description

Angle-seat ext operated valve

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-22 °F

Body material

Bronze

China RoHS compliance

Out of scope

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

2

Connection type

NPT

Contains batteries

No

Control head diameter [mm]

110 mm

Control pressure range [bar] [max]

8 bar

Control pressure range [bar] [min]

4 bar

Control pressure range [psig] [max]

116 psig

Control pressure range [psig] [min]

58 psig

Cv value [gal/min]

77.4 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0 bar

EEE category

5 small equipment (any external dimension < 50 cm)

EU RoHS compliance

Out of scope

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

67 m³/h

Max. test pressure [bar]

37.5 bar

Max. test pressure [psig]

544 psig

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Medium temperature range [°C] [max]

180 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

356 °F

Medium temperature range [°F] [min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

50 mm

Packing format

Single pack

Product accessories

Ext. operat. valve accessories

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

0a1684e1-9b13-4d79-ae59-ca9cab611349

SCIP dossier product name

AV210

Seal Material

PTFE

Serviceable

Ext. operat. valve spare parts
