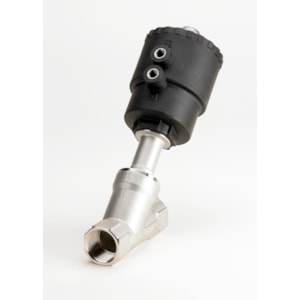

VAN GÓC ĐIỀU KHIỂN TỪ XA DANFOSS AV210C, NPT, 1, PTFE - C/N 042N4554

Gross weight

2.038 Kilogram

Net weight

1.538 Kilogram

Volume

3.625 Liter

EAN

5702423194506

Type

AV210C

Product group

Externally operated valves

Product Name Description

Angle-seat ext operated valve

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-22 °F

Body material

Stainless steel

China RoHS compliance

Out of scope

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

1

Connection type

NPT

Contains batteries

No

Control head diameter [mm]

63 mm

Control pressure range [bar] [max]

10 bar

Control pressure range [bar] [min]

4 bar

Control pressure range [psig] [max]

145 psig

Control pressure range [psig] [min]

58 psig

Cv value [gal/min]

23.1 gal/min

Differential pressure [bar] [max]

11 bar

Differential pressure [bar] [min]

0 bar

EEE category

5 small equipment (any external dimension < 50 cm)

EU RoHS compliance

Out of scope

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

20 m³/h

Max. test pressure [bar]

37.5 bar

Max. test pressure [psig]

544 psig

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Medium temperature range [°C] [max]

180 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

356 °F

Medium temperature range [°F] [min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

25 mm

Packing format

Multi pack

Product accessories

Ext. operat. valve accessories

Quantity per packing format

4 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7bbb87c0-1445-4ad5-acdf-655f6736816a

SCIP dossier product name

AV210

Seal Material

PTFE

Serviceable

Ext. operat. valve spare parts
