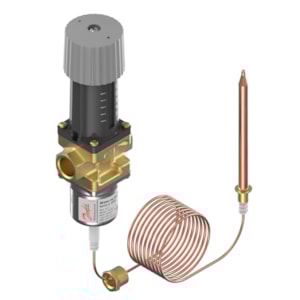

VAN ĐIỀU TIẾT NƯỚC DANFOSS AVTA 15, G, 1/2 - C/N 003N2153

Gross weight

1.555 Kilogram

Net weight

1.245 Kilogram

Volume

4.082 Cubic decimeter

EAN

5715162695067

Type

AVTA 15

Product group

Water regulating valves

Product Name Description

Thermo. operated water valve

Approval

EAC; LLC CDC TYSK; PED; RoHS; RoHS China

Armoring

Yes

Body material

Stainless steel

Cap. tube length fraction [in]

90 9/16 in

Capillary tube gland Int/Ext

Internal

Capillary tube gland size [in]

1/2

Capillary tube gland standard

ISO 228-1

Capillary tube gland type

G

Capillary tube length [mm]

2300 mm

Charge type

Adsorption

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.2 ; 7.3

Connection Internal/External

Internal

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Contains batteries

No

Cv value [gal/min]

2.2 gal/min

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(b); 6(c)

Flow direction indicator

Embossed 1-way arrow

Further information

Setting scale turned 180°

Kv value [m³/h]

1.9 m³/h

Max. pressure on sensor [bar]

25 bar

Max. pressure on sensor [psig]

362.6 psig

Max. sensor temperature [°C]

130 °C

Max. sensor temperature [°F]

266 °F

Max. test pressure [bar] Pe

25 bar

Max. test pressure [psig]

362.6 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media

Aggressive media

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-25 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-13 °F

Opening configuration

Opens on rising sensor temp.

Orifice size [mm]

15 mm

Orifice size fraction [in]

3/5 in

Packing format

Multi pack

Product accessories

Generic accessories; Water valves accessories

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

a698bb81-6c39-4d14-a29f-0fc686728af9

SCIP dossier product name

AVTA FJVA

Sensor size (Ø x L) [in]

3/8 x 5 29/32 in

Sensor size (Ø x L) [mm]

9.5 x 150 mm

Serviceable

Water valve spare parts

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

10 °C

Temperature range [°F] [max]

176 °F

Temperature range [°F] [min]

50 °F
