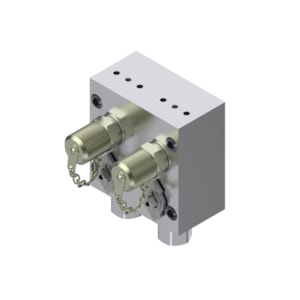

VAN KIỂM TRA ÁP SUẤT DANFOSS MBV 5000 - C/N 061B7056

Gross weight

2.054 Kilogram

Net weight

1.95 Kilogram

Volume

1.13 Liter

EAN

5715162474693

Type

MBV 5000

Product group

Shut-off and regulating valves

Product Name Description

Test valve

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

EAC; LLC CDC EURO-TYSK; RoHS

China RoHS compliance

Yes

China RoHS exemption clause

No

Contains batteries

No

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Further information

SS standard size, expander

MiniMess included

Yes

Number of inputs [pc]

2 pc

Number of outputs [pc]

2 pc

Output connection type

Flange

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure range (Pi) [bar] [max]

60 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure range (Pi) [bar] oil [max]

60 bar

Pressure range (Pi) [bar] oil [min]

0 bar

Pressure thread conn standard

ISO 228-1

Pulse-snubber

No

Quantity per packing format

4 pc

REACH Candidate List substances

No

Specification key

MBV5000-2211S

Test function

Separate

Test pressure connection size

16 x 2

Test pressure connection type

M
