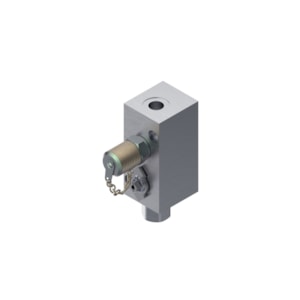

VAN KIỂM TRA ÁP SUẤT DANFOSS MBV 5000 - C/N 061B7030

Gross weight

0.421 Kilogram

Net weight

0.356 Kilogram

Volume

0.546 Liter

EAN

5702423167661

Type

MBV 5000

Product group

Shut-off and regulating valves

Product Name Description

Test valve

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

EAC; LLC CDC EURO-TYSK; RoHS

China RoHS compliance

Out of scope

Contains batteries

No

EU RoHS compliance

Out of scope

MiniMess included

Yes

Number of inputs [pc]

1 pc

Number of outputs [pc]

1 pc

Output connection size

1/4

Output connection standard

ISO 228-1

Output connection type

G

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure range (Pi) [bar] [max]

120 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure range (Pi) [bar] oil [max]

180 bar

Pressure range (Pi) [bar] oil [min]

0 bar

Pressure thread conn standard

ISO 228-1

Pulse-snubber

No

Quantity per packing format

15 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

cd7d33e0-ff13-4f81-9c95-994a26062075

SCIP dossier product name

MBV 1000-5000

Specification key

MBV5000-1X11

Test function

Separate

Test pressure connection size

16 x 2

Test pressure connection type

M
