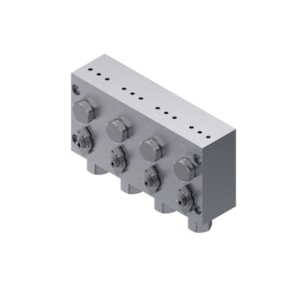

VAN KIỂM TRA ÁP SUẤT DANFOSS MBV 5000 - C/N 061B7016

Gross weight

1.515 Kilogram

Net weight

1.404 Kilogram

Volume

2.236 Liter

EAN

5702423058945

Type

MBV 5000

Product group

Shut-off and regulating valves

Product Name Description

Test valve

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

EAC; LLC CDC EURO-TYSK

China RoHS compliance

Yes

China RoHS exemption clause

No

Contains batteries

No

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Number of inputs [pc]

4 pc

Number of outputs [pc]

4 pc

Output connection type

Flange

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure range (Pi) [bar] [max]

120 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure range (Pi) [bar] oil [max]

180 bar

Pressure range (Pi) [bar] oil [min]

0 bar

Pressure thread conn standard

ISO 228-1

Pulse-snubber

No

Quantity per packing format

9 pc

REACH Candidate List substances

No

Specification key

MBV5000-1401

Test function

Separate

Test pressure connection notes

Hole plug

Test pressure connection size

1/4

Test pressure connection type

G

Test pressure Male/Female

Female

Test thread conn standard

ISO 228-1
