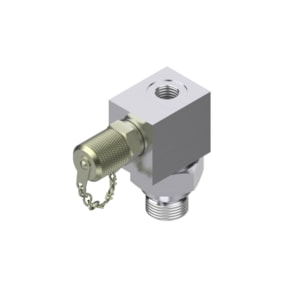

VAN KIỂM TRA SÁP SUẤT DANFOSS MBV 3000 - C/N 061B6110

Gross weight

0.533 Kilogram

Net weight

0.508 Kilogram

Volume

0.402 Liter

EAN

5702428008761

Type

MBV 3000

Product group

Shut-off and regulating valves

Product Name Description

Test valve

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

EAC; LLC CDC EURO-TYSK; RoHS

China RoHS compliance

Yes

China RoHS exemption clause

No

Contains batteries

No

EU RoHS compliance

Yes

EU RoHS exemption clause

No

MiniMess included

Yes

Number of inputs [pc]

1 pc

Number of outputs [pc]

1 pc

Output connection size

1/4

Output connection standard

DIN 3852X

Output connection type

G

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure range (Pi) [bar] [max]

120 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure thread conn standard

ISO 228-1

Pulse-snubber

No

Quantity per packing format

10 pc

REACH Candidate List substances

No

Specification key

MBV 3000-11S

Test function

Separate

Test pressure connection size

16 x 2

Test pressure connection type

M
