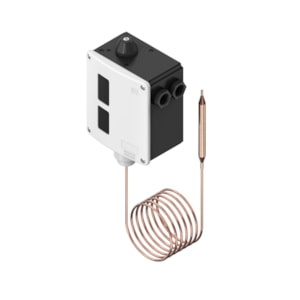

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT123E - C/N 017-618366

Gross weight

1.318 Kilogram

Net weight

0.974 Kilogram

Volume

2.685 Liter

EAN

5702428986359

Type

RT123E

Product group

Switches and thermostats

Product Name Description

Thermostat

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

ATEX - Cat. 2 - Zone 1; CE; EAC; LLC CDC EURO-TYSK; RMRS; RoHS; RoHS China; TYSK

Cap. tube length fraction [in]

196 7/8 in

Capillary tube length [mm]

5000 mm

CE mark

Yes

Charge type

Partial

China RoHS compliance

Yes

Contact function

SPDT gold

Contact rating

Ci=0.5 nF; Ii=0.5 A; Li=0.2 μH; Pi=1 W; Ui=29 V

Contains batteries

No

Diff. @ Max. range setting[°C] [max]

9 °C

Diff. @ Max. range setting[°C] [min]

1.8 °C

Diff. @ Min. range setting[°C] [max]

30 °C

Diff. @ Min. range setting[°C] [min]

6.5 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

EU RoHS compliance

Out of scope

EX Sales text

-20C<ta<+65C; II 2G Ex ia IIC T6...T1 Gb

Max. sensor temperature [°C]

300 °C

Max. sensor temperature [°F]

572 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

15 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

c4c20ce6-4a07-4caa-9394-1e7d8b13ffec

SCIP dossier product name

RT Thermo & RT Diff. Thermo

Sensor size (Ø x L) [in]

3/8 x 4 1/4 in

Sensor size (Ø x L) [mm]

9.5 x 110 mm

Sensor type

Remote bulb

Serviceable

Contact systems

Temperature range [°C] [max]

250 °C

Temperature range [°C] [min]

150 °C

Temperature range [°F] [max]

482 °F

Temperature range [°F] [min]

302 °F
