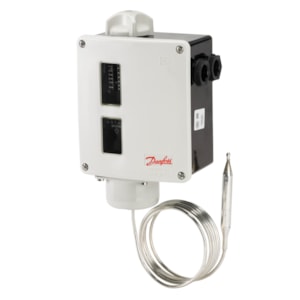

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT106 - C/N 017-514866

Gross weight

1.14 Kilogram

Net weight

1.028 Kilogram

Volume

2.685 Liter

EAN

5702423120383

Type

RT106

Product group

Switches and thermostats

Product Name Description

Thermostat

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-50 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

CCC; CE; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; Read more

Cap. tube length fraction [in]

118 1/8 in

Capillary tube length [mm]

3000 mm

CE mark

Yes

Charge type

Cross-Ambient

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V

Contains batteries

No

Diff. @ Max. range setting[°C] [max]

7 °C

Diff. @ Max. range setting[°C] [min]

2 °C

Diff. @ Min. range setting[°C] [max]

20 °C

Diff. @ Min. range setting[°C] [min]

4 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Max. sensor temperature [°C]

120 °C

Max. sensor temperature [°F]

248 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

15 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

c4c20ce6-4a07-4caa-9394-1e7d8b13ffec

SCIP dossier product name

RT Thermo & RT Diff. Thermo

Sensor size (Ø x L) [in]

1/2 x 3 1/8 in

Sensor size (Ø x L) [mm]

13 x 80 mm

Sensor type

Remote bulb

Serviceable

Contact systems

Temperature range [°C] [max]

90 °C

Temperature range [°C] [min]

20 °C

Temperature range [°F] [max]

194 °F

Temperature range [°F] [min]

68 °F
