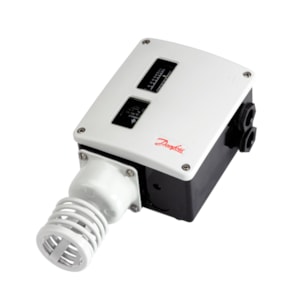

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT17 - C/N 017-152066

Gross weight

0.91 Kilogram

Net weight

0.798 Kilogram

Volume

3.33 Liter

EAN

5702428517607

Type

RT17

Product group

Switches and thermostats

Product Name Description

Thermostat

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-50 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; RMRS; RoHS ; RoHS China; TYSK

CE mark

Yes

Charge type

State Vapour

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V

Contains batteries

No

Diff. @ Max. range setting[°C] [max]

5 °C

Diff. @ Max. range setting[°C] [min]

1.5 °C

Diff. @ Min. range setting[°C] [max]

7 °C

Diff. @ Min. range setting[°C] [min]

2.2 °C

Differential type

Adjustable

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

017-511766

Max. sensor temperature [°C]

100 °C

Max. sensor temperature [°F]

212 °F

Packing format

Industrial pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

c4c20ce6-4a07-4caa-9394-1e7d8b13ffec

SCIP dossier product name

RT Thermo & RT Diff. Thermo

Sensor type

Room sensor

Serviceable

Contact systems

Temperature range [°C] [max]

-15 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

5 °F

Temperature range [°F] [min]

-58 °F
