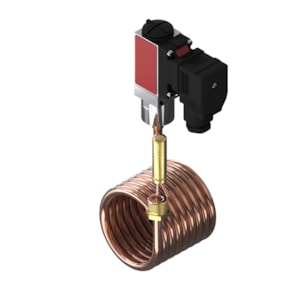

CÔNG TẮC NHIỆT ĐỘ DANFOSS MBC 8100 - C/N 061B815266

Gross weight

0.741 Kilogram

Net weight

0.371 Kilogram

Volume

3.48 Liter

EAN

5702423255450

Type

MBC 8100

Product group

Switches and thermostats

Product Name Description

Thermostat

Alarm Signal

Rising

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS; BV ; CCC ; CCS; CE; DNV; EAC; GL; Read more

Armoring

Yes

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

CE mark

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V; DC13=12 W, 125 V

Contains batteries

No

Differential (FS) [K]

5 K

Differential type

Fixed (max. value)

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

M20

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

Equipment

Armored cap. tube

EU RoHS compliance

Out of scope

Factory setting (FS) [°C]

108 °C

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

6 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

18ff26a2-cbcf-44c1-8f28-74e482b38eed

SCIP dossier product name

MBC 8100 8000 Temperature Switch

Sensor pocket length min. [in]

2 9/16 in

Sensor pocket length min. [mm]

65 mm

Sensor size (Ø x L) [in]

1/2 x 2 in

Sensor size (Ø x L) [mm]

13 x 50 mm

Sensor type

Remote bulb

Serviceable

No

Specification key

2431-2A02000

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

70 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

158 °F
