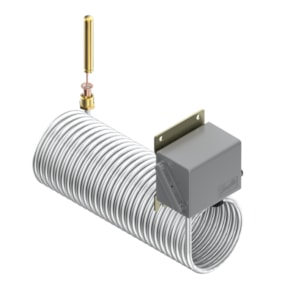

CÔNG TẮC NHIỆT ĐỘ DANFOSS KPS80 - C/N 060L318566

Gross weight

2.266 Kilogram

Net weight

2.153 Kilogram

Volume

5.087 Liter

EAN

5702423148325

Type

KPS80

Product group

Switches and thermostats

Product Name Description

Thermostat

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS; BV; CCC; CCS; CE; DNV; EAC; GL; Read more

Armoring

Yes

Cap. tube length fraction [in]

393 11/16 in

Capillary tube length [mm]

10000 mm

CE mark

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
for gold 1…30mA, 5...30V

Contains batteries

No

Diff. @ Min. range setting [K] [max]

18 K

Diff. @ Min. range setting [K] [min]

4.5 K

Diff. @ Min. range setting[°C] [max]

18 °C

Diff. @ Min. range setting[°C] [min]

4.5 °C

Differential type

Adjustable

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Equipment

Armored cap. tube

EU RoHS compliance

Out of scope

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Parts included

Sensor pocket

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)

Reset function

Auto

SCIP dossier no.

c1a694ec-501f-43db-83d2-8a9a314459e0

SCIP dossier product name

KP KPS KPU Thermostat

Sensor pocket conn. length[mm]

75 mm

Sensor pocket conn. size

1/2

Sensor pocket conn. type

NPT

Sensor pocket length min. [in]

4 3/8 in

Sensor pocket length min. [mm]

110 mm

Sensor pocket material

Brass

Sensor size (Ø x L) [in]

1/2 x 3 1/2 in

Sensor size (Ø x L) [mm]

13 x 90 mm

Sensor type

Remote bulb

Serviceable

No

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

70 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

158 °F

UL approval file name

E73170

UL mark

Yes
