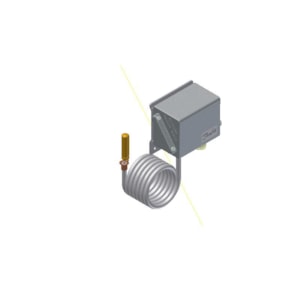

CÔNG TẮC NHIỆT ĐỘ DANFOSS KPS79 - C/N 060L412266

Gross weight

1.206 Kilogram

Net weight

1.091 Kilogram

Volume

3.684 Liter

EAN

5702423148974

Type

KPS79

Product group

Switches and thermostats

Product Name Description

Thermostat

Alarm Signal

Rising

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS; BV; CCC; CCS; CE; DNV; EAC; GL; Read more

Armoring

Yes

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

CE mark

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
for gold 1…30mA, 5...30V

Contains batteries

No

Differential (FS) [K]

4.5 K

Differential type

Fixed (max. value)

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Equipment

Armored cap. tube

EU RoHS compliance

Out of scope

Factory setting (FS) [°C]

80 °C

Factory setting type

Dedicated

Max. sensor temperature [°C]

200 °C

Max. sensor temperature [°F]

392 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)

Reset function

Auto

SCIP dossier no.

c1a694ec-501f-43db-83d2-8a9a314459e0

SCIP dossier product name

KP KPS KPU Thermostat

Sensor pocket length min. [in]

3 in

Sensor pocket length min. [mm]

75 mm

Sensor size (Ø x L) [in]

1/2 x 2 1/2 in

Sensor size (Ø x L) [mm]

13 x 63 mm

Sensor type

Remote bulb

Serviceable

No

Temperature range [°C] [max]

100 °C

Temperature range [°C] [min]

50 °C

Temperature range [°F] [max]

212 °F

Temperature range [°F] [min]

122 °F

UL approval file name

E73170

UL mark

Yes
