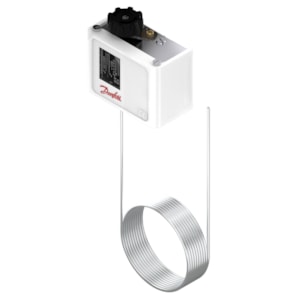

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP61 - C/N 060L119566

Gross weight

0.422 Kilogram

Net weight

0.358 Kilogram

Volume

1.87 Liter

EAN

5702428014595

Type

KP61

Product group

Switches and thermostats

Product Name Description

Thermostat

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

150 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; Read more

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

CE mark

Yes

Charge type

Vapour

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V

Contains batteries

No

Diff. @ Max. range setting [K] [max]

7 K

Diff. @ Max. range setting [K] [min]

1.5 K

Diff. @ Max. range setting[°C] [max]

7 °C

Diff. @ Max. range setting[°C] [min]

1.5 °C

Diff. @ Min. range setting [K] [max]

23 K

Diff. @ Min. range setting [K] [min]

5.5 K

Diff. @ Min. range setting[°C] [max]

23 °C

Diff. @ Min. range setting[°C] [min]

5.5 °C

Differential type

Adjustable

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Max. sensor temperature [°C]

120 °C

Max. sensor temperature [°F]

248 °F

Packing format

Industrial pack

Product accessories

Switches accessories

Product description

Thermostat

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)

Reset function

Auto

SCIP dossier no.

c1a694ec-501f-43db-83d2-8a9a314459e0

SCIP dossier product name

KP KPS KPU Thermostat

Sensor size (Ø x L) [in]

1/10 x 19 5/8 in

Sensor size (Ø x L) [mm]

2.5 x 500 mm

Sensor type

Capillary tube sensor

Serviceable

No

Temperature range [°C] [max]

15 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

59 °F

Temperature range [°F] [min]

-22 °F

UL approval file name

E31024

UL mark

Yes
