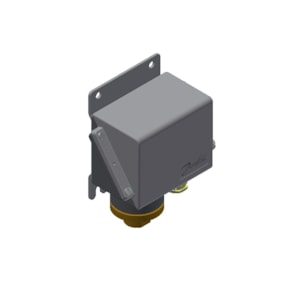

CÔNG TẮC ÁP SUẤT DANFOSS KPS45 - C/N 060-411466

Gross weight

1.141 Kilogram

Net weight

1.056 Kilogram

Volume

1.87 Liter

EAN

5702423147137

Type

KPS45

Product group

Switches and thermostats

Product Name Description

Pressure switch

Alarm Signal

Rising

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

ABS; BV; CCC; CCS; CE; DNV; EAC; GL; Read more

Burst pressure [bar]

240 bar

CE mark

Yes

China RoHS compliance

Yes

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR max. 50 A; for gold 1…30 mA, 5...30 V

Contains batteries

No

Differential [bar]

5 bar

Differential [psi]

73 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

EU RoHS compliance

Out of scope

Factory setting [bar]

30 bar

Factory setting [MPa]

3 MPa

Factory setting [psig]

435 psig

Max. test pressure [bar] Pe

180 bar

Max. test pressure [psig]

2611 psig

Max. Working Pressure [bar]

120 bar

Max. Working Pressure [psig]

1740 psig

Packing format

Industrial pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Diaphragm

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

d1127e97-408e-40d0-9aba-98480f7dad9c

SCIP dossier product name

KPS Pressure Switch

Serviceable

No

UL approval file name

E73170

UL mark

Yes
