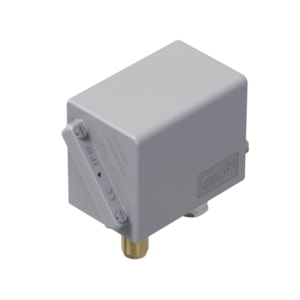

CÔNG TẮC ÁP SUẤT DANFOSS KPS39 - C/N 060-419266

Gross weight

0.808 Kilogram

Net weight

0.723 Kilogram

Volume

1.87 Liter

EAN

5702423147304

Type

KPS39

Product group

Switches and thermostats

Product Name Description

Pressure switch

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS; BV; CCC; CCS; CE; DNV; EAC; GL; Read more

CE mark

Yes

China RoHS compliance

Yes

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR max. 50 A; for gold 1…30 mA, 5...30 V

Contains batteries

No

Differential [bar] [max]

6 bar

Differential [bar] [min]

2 bar

Differential [psi] [max]

87 psi

Differential [psi] [min]

29 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Equipment

Without bracket

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Identical product

060-319266

Max. test pressure [bar] Pe

53 bar

Max. test pressure [psig]

769 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Packing format

Industrial pack

Pressure connection size

3/8

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [max]

35 bar

Regulation range [bar] Pe [min]

10 bar

Regulation range [MPa] Pe [max]

3.5 MPa

Regulation range [MPa] Pe [min]

1 MPa

Regulation range [psig] Pe [max]

508 psig

Regulation range [psig] Pe [min]

145 psig

Reset function

Auto

SCIP dossier no.

d1127e97-408e-40d0-9aba-98480f7dad9c

SCIP dossier product name

KPS Pressure Switch

Serviceable

No
