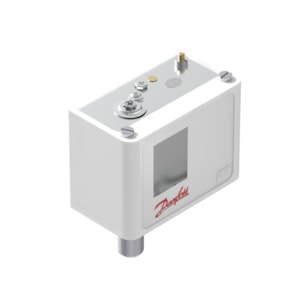

CÔNG TẮC ÁP SUẤT DABFFOSS KPI35 - C/N 060-315566

Gross weight

0.556 Kilogram

Net weight

0.34 Kilogram

Volume

0.501 Liter

EAN

5702423263004

Type

KPI35

Product group

Switches and thermostats

Product Name Description

Pressure switch

Alarm Signal

Rising

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC; CE; CMIM; EAC; LLC CDC EURO-TYSK; LVD; RINA; RoHS China; c UL us UL873, CS C22.2

CE mark

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR=36 A, 240 V; LR=48 A, 120 V

Contains batteries

No

Differential [bar]

0.7 bar

Differential [psi]

10 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [bar]

1.2 bar

Factory setting [MPa]

0.12 MPa

Factory setting [psig]

17 psig

Further information

For drinking water

In scope of WEEE

Yes

Max. test pressure [bar] Pe

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

261 psig

Packing format

Industrial pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)

Reset function

Auto

SCIP dossier no.

1b8fc5ed-65e2-48fc-8738-8cce613a9786

SCIP dossier product name

KP KPI

Serviceable

No

UL approval file name

E31024

UL mark

Yes
