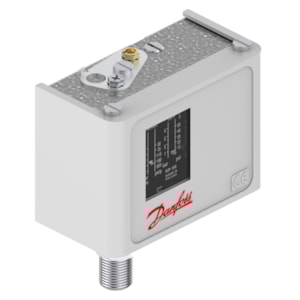

CÔNG TẮC ÁP SUẤT DANFOSS KP36 - C/N 060-113966

Gross weight

0.311 Kilogram

Net weight

0.276 Kilogram

Volume

0.468 Liter

EAN

5702423146680

Type

KP36

Product group

Switches and thermostats

Product Name Description

Pressure switch

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC; CE; CMIM; EAC; LLC CDC EURO-TYSK; LVD; RINA; RMRS; Read more

CE mark

Yes

China RoHS compliance

Yes

Contact function

SPDT gold

Contact rating

AC15=4 A, 400 V; AC1=10 A, 400 V; AC3=6 A, 400 V; DC13=12 W, 220 V; for gold 1…30 mA, 5...30 V

Contains batteries

No

Differential [bar] [max]

4 bar

Differential [bar] [min]

0.7 bar

Differential [psi] [max]

58 psi

Differential [psi] [min]

10 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

060-113766

In scope of WEEE

Yes

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Packing format

Industrial pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

48 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1); Cadmium oxide (CAS no.1306-19-0)

Regulation range [bar] Pe [max]

14 bar

Regulation range [bar] Pe [min]

2 bar

Regulation range [psig] Pe [max]

203 psig

Regulation range [psig] Pe [min]

29 psig

Reset function

Auto

SCIP dossier no.

1b8fc5ed-65e2-48fc-8738-8cce613a9786

SCIP dossier product name

KP KPI

Serviceable

No

UL approval file name

E31024; MH27572

UL mark

Yes
