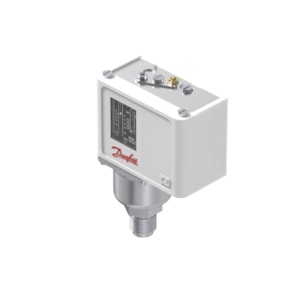

CẢM BIẾN ÁP SUẤT DANFOSS KP34 - C/N 060-219166

Gross weight

0.522 Kilogram

Net weight

0.481 Kilogram

Volume

1.993 Liter

EAN

5702428582100

Type

KP34

Product group

Switches and thermostats

Product Name Description

Pressure switch

Alarm Signal

Falling

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; RINA; RMRS; RoHS China; Read more

CE mark

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

120Vac,16FLA,96LRA,3APilotDuty
16 A resistive, single phase
240 V AC, 8 FLA, 48 LRA
240V dc,12W pilot duty(0.05 A)
8 A resistive, single phase

Contains batteries

No

Differential [bar]

0.16 bar

Differential [psi]

2.3 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [bar]

0.1 bar

Factory setting [MPa]

0.01 MPa

Factory setting [psig]

1.5 psig

In scope of WEEE

Yes

Max. test pressure [bar] Pe

6 bar

Max. test pressure [psig]

87 psig

Max. Working Pressure [bar]

4 bar

Max. Working Pressure [psig]

58 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cadmium oxide (CAS no.1306-19-0)

Reset function

Auto

SCIP dossier no.

1b8fc5ed-65e2-48fc-8738-8cce613a9786

SCIP dossier product name

KP KPI

Serviceable

No

UL approval file name

E31024; MH27572

UL mark

Yes
