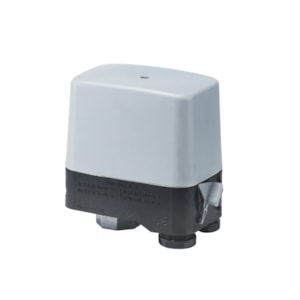

CÔNG TẮC ÁP SUẤT DANFOSS CS - C/N 031E023766

Gross weight

0.542 Kilogram

Net weight

0.438 Kilogram

Volume

1.219 Liter

EAN

5702428005128

Type

CS

Product group

Switches and thermostats

Product Name Description

Pressure switch

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

CE; EAC; LLC CDC EURO-TYSK; LVD; RoHS; TYSK

CE mark

Yes

China RoHS compliance

Out of scope

Contact function

TPST

Contact rating

AC3=12 A, 220 - 415 V; AC3=9 A, 600 V; DC13=2 A, 220 V; DC14=2 A, 220 V

Contains batteries

No

Differential [bar]

2 bar

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Female

Electrical connection size

Pg 16

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP55

Equipment

Relief valve 1/4 in

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [bar]

9 bar

In scope of WEEE

Yes

Max. test pressure [bar] Pe

20 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

12 bar

Max. Working Pressure [psig]

174 psig

Packing format

Multi pack

Pressure connection size

1/2

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Product accessories

Switches accessories

Product description

Pressure Switch

Quantity per packing format

30 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

e65e8dcc-5aa5-41db-aed7-9aec2d1ff7f0

SCIP dossier product name

CS Pressure Switch

Serviceable

No
