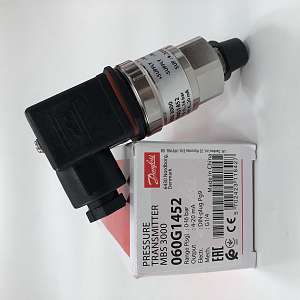

CẢM BIẾN ÁP SUẤT DANFOSS MBS3000 0-16BAR - C/N 060G1452

Gross weight

0.164 Kg

Net weight

0.153 Kg

Volume

0.42 Liter

EAN

5702423118427

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.4

Identical product

060G4142

In scope of WEEE and contain batteries

No

International Article Number

5702423118427

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

96 bar

Overload pressure max. [psi]

1392 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

16 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

232.06 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

Specification key

MBS 3000-2231-A1AB04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

MBS 3000
