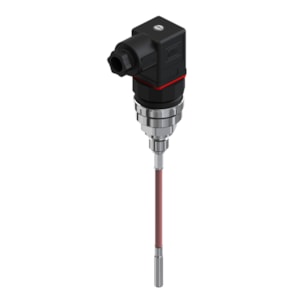

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 155, 100 mm, G, 1/4 - C/N 097U0249

Gross weight

0.125 Kilogram

Net weight

0.107 Kilogram

Volume

0.495 Liter

EAN

5715162461266

Type

MBT 155

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Approval

CE

CE mark

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

Contains batteries

No

Electrical connection

Angular connector

Electrical connection size

Pg 11

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/4

Process connection standard

ISO 1179-2

Process connection type

G

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 316 TI

Quantity per packing format

13 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

ISO 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

200 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

392 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Integrated

Type designation

MBT 155-100mm
