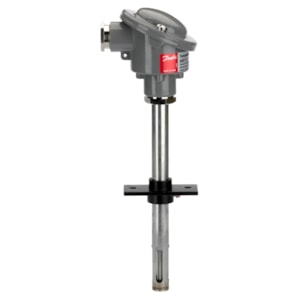

CẢM BIẾN NHIỆT ĐỘ DANFOSS AKS 21 D, Flange - C/N 084N2035

Gross weight

0.383 Kilogram

Net weight

0.375 Kilogram

Volume

0.894 Liter

EAN

5702422036593

Type

AKS 21 D

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Approval

CE

CE mark

Yes

China RoHS compliance

Out of scope

Connection type

Flange

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP56

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

Insertion length [in]

6.51 in

Insertion length [mm]

165 mm

Measuring range [°C] [max]

80 °C

Measuring range [°C] [min]

-40 °C

Measuring range [°F] [max]

176 °F

Measuring range [°F] [min]

-40 °F

Number of terminals [pcs]

3 pc

Packing format

Multi pack

Process connection notes

Flange

Protection tube diameter [in]

0.59 in

Protection tube diameter [mm]

15 mm

Protection tube length [in]

6.3 in

Protection tube length [mm]

160 mm

Protection tube material

STAINLEES STEEL

Quantity per packing format

10 pc

REACH Candidate List substances

No

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Wires [pcs]

2 pc
