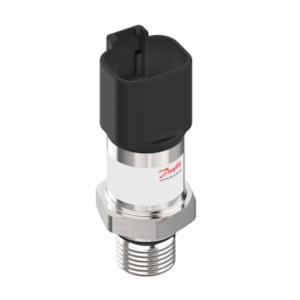

CẢM BIẾN ÁP SUẤT DANFOSS MEP 2650, 0 - 60 bar, 0 - 870 psi - C/N 063G4933

Gross weight

0.067 Kilogram

Net weight

0.053 Kilogram

Volume

0.225 Liter

EAN

5702428887854

Type

MEP 2650

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 2

- common

Pin 1

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

1400 bar

Burst pressure [psig]

20000 psig

CE mark

Yes

China RoHS compliance

Out of scope

Comments

PIN 3: CO.6:HIGH TO LOW: 40BAR

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G1933

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Switch

Overload pressure max. [bar]

210 bar

Overload pressure max. [psig]

3000 psig

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

60 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

870 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MEP 2650-28-6-040-0-8-5-C7GB04

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

UL mark

Yes
