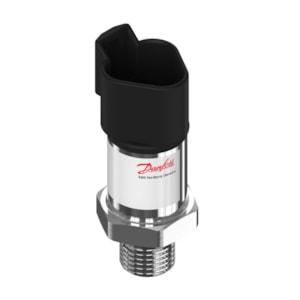

CẢM BIẾN ÁP SUẤT DANFOSS MEP 2650, 0 - 250 bar, 0 - 3625 psi - C/N 063G4828

Gross weight

0.067 Kilogram

Net weight

0.06 Kilogram

Volume

0.225 Liter

EAN

5702428849074

Type

MEP 2650

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin A

- common

Pin B

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2500 bar

Burst pressure [psig]

36250 psig

CE mark

Yes

China RoHS compliance

Out of scope

Comments

PIN C: CODE 8: HI - LOW:148BAR

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G1828

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Switch

Overload pressure max. [bar]

750 bar

Overload pressure max. [psig]

10800 psig

Packing format

Industrial pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

50 pc

REACH Candidate List substances

No

Response time max. [ms]

8 ms

Specification key

MEP 2650-34-8-148-0-4-1-C7GB04

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL mark

Yes
