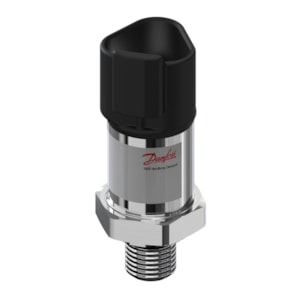

CẢM BIẾN ÁP SUẤT DANFOSS MEP 2650, 0 - 60 bar, 0 - 870 psi - C/N 063G2496

Gross weight

68 Gram

Net weight

55 Gram

Volume

0.09 Liter

EAN

5715255041399

Type

MEP 2650

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin A

- common

Pin B

Accuracy, typical [±FS%]

2 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US UL Recognized; CE

Burst pressure [bar]

1400 bar

CE mark

Yes

China RoHS compliance

Out of scope

Comments

PIN C:NPN-NC-SWITCH TO GROUND

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

3 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Switch

Overload pressure max. [bar]

210 bar

Packing format

Multi pack

Pin surface material

Sn

Pressure connection HEX [mm]

22 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J1926-2

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

60 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

870 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MEP 2650-28-6-010-0-2-1-C7BD08

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL mark

Yes
