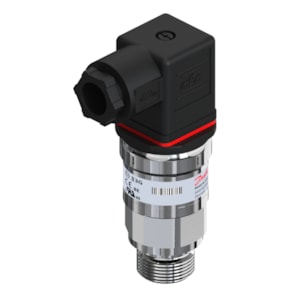

CẢM BIẾN ÁP SUẤT DANFOSS MBS 9200, -150 - 150 mbar, -2.18 - 2.18 psi - C/N 064G5278

Gross weight

0.205 Kilogram

Net weight

0.188 Kilogram

Volume

0.253 Liter

EAN

5715255117018

Type

MBS 9200

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Acc. @ ref. Temp. ±FS typ. [%]

0.5 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-25 °C

Approval

C UL US UL Recognized; CE

Burst pressure [bar]

50 bar

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Contains batteries

No

Durability P @ 10-90% FS

10000000

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Intrinsically safe

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-20 °C

Mount.pos. err. @ 180°[±FS%]

0.2 %

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

3.5 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

A

Pressure connection size

1/2

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [mbar] [max]

150 mbar

Pressure range [mbar] [min]

-150 mbar

Pressure range [psi] [max]

2.18 psi

Pressure range [psi] [min]

-2.18 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Recommen. mounting torque [Nm]

25 nm

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 9200-BU11-A1GB08-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

1.5 %

UL mark

Yes
