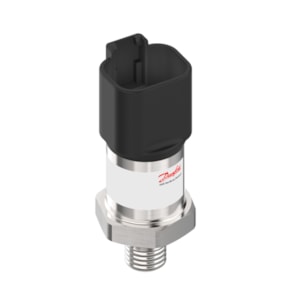

CẢM BIẾN ÁP SUẤT DANFOSS MEP 2250, 0 - 100 bar, 0 - 1450 psi - C/N 063G2159

Gross weight

0.063 Kilogram

Net weight

0.048 Kilogram

Volume

0.091 Liter

EAN

5702428963763

Type

MEP 2250

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 4

+ supply

Pin 2

- common

Pin 1

Accuracy, typical [±FS%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

2000 bar

Burst pressure [psig]

29000 psig

CE mark

Yes

China RoHS compliance

Out of scope

Comments

PIN 3:NPN NC.12BAR

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Deutsch

Electrical connection size

4 pin

Electrical connection standard

DT04

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

063G5159

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Voltage

Output signal [V] [max]

4.5 V

Output signal [V] [min]

0.5 V

Overload pressure max. [bar]

300 bar

Overload pressure max. [psig]

4300 psig

Packing format

Multi pack

Pin surface material

Au

Pressure connection HEX [mm]

22 mm

Pressure connection size

7/16-20

Pressure connection standard

ISO 6149-2

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

100 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

1450 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

48 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Specification key

MEP 2250-30-2-012-C1-0-C3FA04

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

UL mark

Yes
