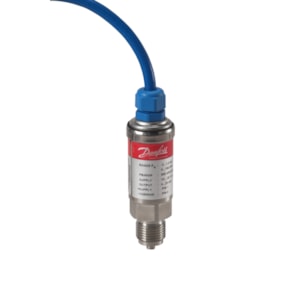

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4251, 0 - 10 bar, 0 - 145 psi - C/N 060G6462

Gross weight

0.484 Kilogram

Net weight

0.448 Kilogram

Volume

1.281 Liter

EAN

5702428930604

Type

MBS 4251

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Black 1

- common

Black 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Cable length [in]

196 in

Cable length [m]

5 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened Ex

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

EX Sales text

Ex iA IIC T5..T4 Ga/Gb

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428930604

Intrinsically safe

Yes

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-4 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

M5

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

Yes

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4251-2011-DCGB04-1

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

10 V

UL mark

Yes
