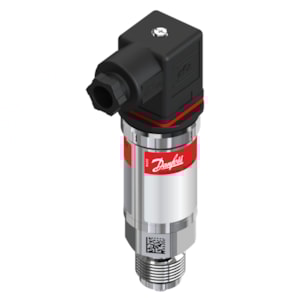

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4201, -1 - 16 bar, -14.5 - 232 psi - C/N 060G7697

Gross weight

0.259 Kilogram

Net weight

0.213 Kilogram

Volume

0.393 Liter

EAN

5715162526033

Type

MBS 4201

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Approval

ATEX; CE; C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

EX Sales text

Ex iA IIC T5..T4 Ga/Gb

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5715162526033

Intrinsically safe

Yes

Low Clipping level

3.6

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

96 bar

Overload pressure max. [psi]

1392 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/2

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

16 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

232 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4201-9031-A1AB08-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

10 V

UL mark

Yes
