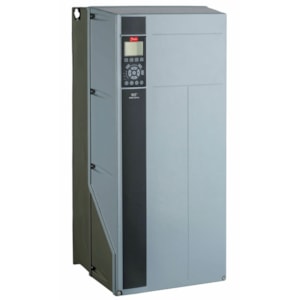

MÁY BIẾN TẦN DANFOSS FC302 75KW - C/N 131H5855

Gross weight

58.13 Kilogram

Net weight

54.79 Kilogram

Volume

232.653 Liter

EAN

5710107214372

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P75K

(P75K) 75 KW / 100 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E21

IP21 / Type 1

RFI Filter

H2

RFI Filter

Brake - Safe Stop

B

Brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

D

Loadsharing

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

C2

C2

Typecode Part 1

FC-302P75KT5E21H2BGC

Typecode Part 2

DXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

75

75

Power 110% (NO) [KW]

90

90

Height [mm]

780,0

780,0

Width w/ no C options [mm]

370,0

370,0

Depth [mm]

332,0

332,0

Depth with Option A/B [mm]

332,0

332,0

kVA

102

102

Power Loss NO [W]

1474

1474

Power Loss NO [W]

1474

1474

Power Loss HO [W]

1232

1232

Power Loss HO [W]

1232

1232

Continuous Current (NO) [A]

177

177

Intermittent Current (NO) [A]

195

195

Continuous Current (NO) [A]

160

160

Intermittent Current (NO) [A]

176

176

Continuous Current (HO) [A]

147

147

Intermittent Current (HO) [A]

220

220

Continuous Current (HO) [A]

130

130

Intermittent Current (HO) [A]

195

195

Calculated Gross Weight [kg]

58.13

Calculated Net Weight [kg]

54.79

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P75KT5E21H2BGC

Modelcode02

DXXSXXXXAXBXCXXXXDX

Delivering plant

ERR01

ERR01
