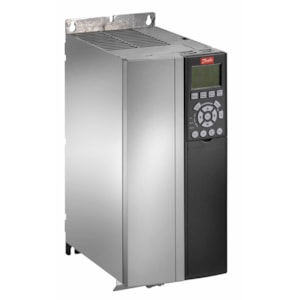

MÁY BIẾN TẦN DANFOSS FC302 30KW - C/N 131H3934

Gross weight

24.29 Kilogram

Net weight

20.59 Kilogram

Volume

105.71 Liter

EAN

5702427542549

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

P30K

(P30K) 30 KW / 40 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A0

PROFIBUS DP MCA 101

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

D0

MCB-107 24V DC backup

Frame Size

B4

B4

Typecode Part 1

FC-302P30KT5E20H2XGX

Typecode Part 2

XXXSXXXXA0BXCXXXXD0

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

30

30

Power 110% (NO) [KW]

37

37

Height [mm]

516,0

516,0

Width w/ no C options [mm]

229,0

229,0

Depth [mm]

242,0

242,0

Depth with Option A/B [mm]

242,0

242,0

kVA

42.3

42.3

Power Loss NO [W]

698

698

Power Loss NO [W]

698

698

Power Loss HO [W]

570

570

Power Loss HO [W]

570

570

Continuous Current (NO) [A]

73

73

Intermittent Current (NO) [A]

80.3

80.3

Continuous Current (NO) [A]

65

65

Intermittent Current (NO) [A]

71.5

71.5

Continuous Current (HO) [A]

61

61

Intermittent Current (HO) [A]

91.5

91.5

Continuous Current (HO) [A]

52

52

Intermittent Current (HO) [A]

78

78

Calculated Gross Weight [kg]

24.29

Calculated Net Weight [kg]

20.59

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Producing plant

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P30KT5E20H2XGX

Modelcode02

XXXSXXXXA0BXCXXXXD0
