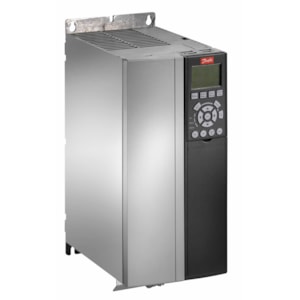

MÁY BIẾN TẦN DANFOSS FC302 11KW - C/N 131H8788

Mã sản phẩm: 131H8788
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Máy biến tần Danfoss FC-302P11KT5E20H2XGXXXXSXXXXA0BXCXXXXD0, 11KW, 3 Pha, 380-500 VAC

Frequency converter
FC-302P11KT5E20H2XGXXXXSXXXXA0BXCXXXXD0

VLT® AutomationDrive FC-302
(P11K) 11 KW / 15 HP,
Three phase, 380 - 500 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
...

Show more

Model code:FC-302P11KT5E20H2XGXXXXSXXXXA0BXCXXXXD0

Product details

Gross weight



11.31 Kilogram



Net weight



10.29 Kilogram



Volume



57.585 Liter



EAN



5702427592834







Product View (Switch)

GLBL

Global (Standard)



Product Group

FC-

VLT® AutomationDrive FC-



Series

302

302



Power Rating

P11K

(P11K) 11 KW / 15 HP



Phase

T

Three phase



Mains Voltage

5

380 - 500 VAC



Enclosure

E20

(E20) IP20 / Chassis



RFI Filter

H2

RFI Filter



Brake - Safe Stop

X

No brake chopper



LCP

G

Graphical Loc. Cont. Panel



Coating PCB

X

Not coated PCB



Mains Option

X

No Mains Option



Adaptation A

X

Standard Cable Entries



Adaptation B

X

No adaptation



Software Release

SXXX

Latest release std. SW.



Software Language Pack

X

Standard Language Pack



A Option

A0

PROFIBUS DP MCA 101



B Option

BX

No B Option



C0 Option MCO

CX

No C0 option



C1 Option

X

No C1 option



C Option Software

XX

No software option



D Option

D0

MCB-107 24V DC backup



Frame Size

B3

B3



Typecode Part 1



FC-302P11KT5E20H2XGX



Typecode Part 2



XXXSXXXXA0BXCXXXXD0



Product Catalog

NO_VIEW

NO VIEW



Power 160% (HO) [KW]

11

11



Power 110% (NO) [KW]

15

15



Height [mm]

399,0

399,0



Width w/ no C options [mm]

165,0

165,0



Width w/ two C options [mm]

225,0

225,0



Depth [mm]

249,0

249,0



Depth with Option A/B [mm]

262,0

262,0



kVA

16.6

16.6



Power Loss NO [W]

392

392



Power Loss NO [W]

392

392



Power Loss HO [W]

291

291



Power Loss HO [W]

291

291



Continuous Current (NO) [A]

32

32



Intermittent Current (NO) [A]

35.2

35.2



Continuous Current (NO) [A]

27

27



Intermittent Current (NO) [A]

29.7

29.7



Continuous Current (HO) [A]

24

24



Intermittent Current (HO) [A]

38.4

38.4



Continuous Current (HO) [A]

21

21



Intermittent Current (HO) [A]

33.6

33.6



Calculated Gross Weight [kg]



11.31



Calculated Net Weight [kg]



10.29



ECCN EU

Y901

Y901



ECCN US

3A999.a

3A999.a



Vendor

ERR01

Cannot Determine Vendor



Producing plant

ERR01

Cannot Determine Vendor



Modelcode01



FC-302P11KT5E20H2XGX



Modelcode02



XXXSXXXXA0BXCXXXXD0
